TECHNICAL WALKTHROUGH
Technical Data

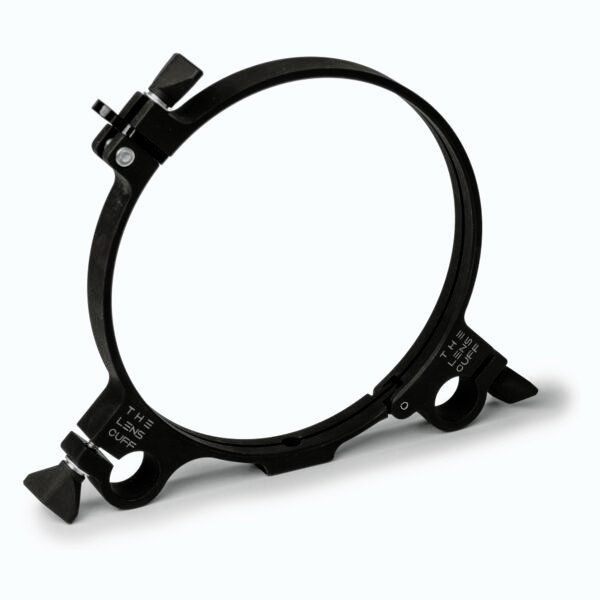

The Lens Cuff sizes and compatible diameters with included inserts/donuts:
- 65mm: Adaptable to ⌀ 62.5mm, ⌀ 60mm & ⌀ 57.5mm
- 75mm: Adaptable to ⌀ 72.5mm, ⌀ 70mm & ⌀ 67.5mm
- 85mm: Adaptable to ⌀ 82.5mm, ⌀ 80mm & ⌀ 77.5mm
- 95mm: Adaptable to ⌀ 92.5mm, ⌀ 90mm & ⌀ 87.5mm
- 114mm: Adaptable to ⌀ 110mm, ⌀ 105mm & ⌀ 100mm
Specifications
- Machined from a single block of Aluminium Superalloy
- Stealth Carbon Black Hard Anodised
- Custom spring loaded wingnut fasteners with standard M4 threads
- Low-profile lens support foot with 1/4 20 thread and Arri Standard orienting pins
- Symmetrical 2x 15mm rail clamps
What is included
- 1x The Lens Cuff with 3x inserts/donuts to adapt to smaller sizes (see technical data)
- 1x Stubby 15mm rail with 1x Sprig for optimal cable management.
- 1x Alcantara pouch to protect your Lens Cuff and your equipment.
FAQ
NOTE: The Lens Cuff Lens Compatibility List is in no way restrictive. Lens compatibility details sourced through internal testing and user submissions.
|
Lens |
Compatibility |
Step-down |
Notes |
|
7artisans Vision |
95mm Front Barrel | 95mm - 90mm | |
|
7artisans Spectrum |
85mm Front Barrel | - | |
|
Arri Master Prime |
114mm Front Barrel | Mid Barrel 114mm - 110mm between the rings | |
|
Arri Master Prime Anamorphic |
95mm Front Barrel | 95mm Mid Barrel between the rings | |
|
Arri Signature Primes |
114mm Mid-Barrel | Mid Barrel 114mm - 105 mm between the Iris and Focus rings | |
|
Arri Signature Zoom 16-32mm |
TBD | Mid Barrel 114mm - 110mm between the rings | 156mm In development |
|
Arri Signature Zoom 25-75mm |
114mm Front Barrel | Mid Barrel 114mm - 110mm between the rings | |
|
Arri Signature Zoom 45-135mm |
114mm Front Barrel | Mid Barrel 114mm - 110mm between the rings | |
|
Arri Signature Zoom 65-300mm |
TBD | Mid Barrel 114mm - 110mm between the rings | 156mm In development |
|
ARRI 9.5-18mm Ultra Wide Zoom |
114mm | Mid Barrel 114mm - 110mm between the rings | |
|
ARRI Ultra Prime |
95mm Front Barrel | 95mm Mid Barrel between the rings | |
|
Angenieux Optimo Zooms |
114mm Front Barrel | 85mm with 85 - 80mm between the rings | |
|
Angenieux Anamorphic Zoom |
136mm Mid Barrel | - | 136mm in development |
|
Angenieux Optimo Prime |
114mm Mid Barrel | Mid Barrel 114mm - 110mm between the rings | |
|
Atlas Mercury |
95mm Front Barrel | - | |
|
Atlas Orion |
114mm Front Barrel | - | |
|
Chiopt Xtreme Zoom |
85mm Mid Barrel | 95mm with 95 - 90mm with the support foot removed | |
|
Canon Sumire Prime |
114mm Front Barrel | ||
|
Canon CN-E |
114mm Front Barrel | ||
|
Canon CN-E 45-135mm Flex Zoom |
114mm Mid Barrel | ||
|
Cooke Anamorphic |
114mm Front Barrel | 114mm Mid Barrel for some focal lengths | |
|
Blazar Remus x1.5 |
85mm Front Barrel | 85mm-80mm | |
|
Cooke Panchro |
114mm Front Barrel | 114mm - 110mm | |
|
Cooke S4 - S8 |
114mm Front Barrel | Most Focal lengths | |
|
Cooke SP3 |
65mm Mid Barrel | 65mm Mid Barrel with 65-64mm step-down insert | |
|
DZO Gnosis |
114mm Front Barrel | 114mm - 110mm Mid Barrel | |
|
DZO Catta Zoom |
85mm Mid Barrel | 85mm with 85-80mm between the rings | |
|
DZO Catta Ace Zoom |
85mm Mid Barrel | 85mm with 85 - 80mm between the rings | |
|
DZO Pictor Zoom |
95mm Front Barrel | 95 - 90mm Front Barrel between the rings | |
|
DZO Vespid Primes |
85mm Mid Barrel | 85mm with 85 - 80mm Front and Mid Barrel | |
|
Fujifilm MKX Zoom |
85mm Mid Barrel | 85mm with 85 - 80mm Front and Mid Barrel | |
|
Fujinon MK |
85mm Mid Barrel | 85mm with 85 - 80mm Front and Mid Barrel | |
|
Fujinon Premista |
114mm Mid Barrel | 114mm Mid Barrel | |
|
Great Joy 35mm Anamorphic |
85mm Front Barrel | 85mm Mid Barrel with 85 - 77.5mm between the rings | |
|
Laowa Nanomorph Mirrorless |
65mm Front Barrel | 65mm - 58.5mm | |
|
Laowa Nanomorph Zoom |
85mm Mid Barrel | 85mm Mid Barrel with 85 - 80mm between the Focus and Zoom rings | Remove the Support Foot |
|
Laowa Ranger Zooms |
85mm Mid Barrel | 85mm Mid Barrel with 85 - 77.5mm between the Focus and Zoom rings | Remove the Support Foot |
|
Leitz Cine ELSIE |
95mm Front Barrel | 95mm Mid Barrel with 95 - 90mm between the rings | |
|
Leitz Cine HUGO |
95mm Front Barrel | ||
|
Leitz Cine Classic |
114mm Front Barrel | 114mm - 110mm Mid Barrel | |
|
Leitz Cine THALIA |
95mm Front Barrel | 95mm Mid Barrel with 95 - 92.5mm between the rings | |
|
Meike S35 Cine Mini Primes |
85mm Front Barrel | 85mm with 85 - 80mm Front Barrel | |
|
Meike Full Frame |
85mm & 95mm Front Barrel | 95mm Front Barrel with 95 - 90mm | |
|
Nisi Athena |
85mm | 85mm - 80mm step down | |
|
P+S TECHNIK EVOLUTION 2x |
85mm Mid Barrel | ||
|
Rokinon XEEN CF |
114mm Mid Barrel | 114mm - 110mm Mid Barrel between the rings | |
|
Sigma Cine 18-35mm T2 Zoom |
95mm Front and Mid Barrel | 95mm with the support foot removed | |
|
Sigma Cine 50-100mm T2 Zoom |
95mm Front and Mid Barrel | 95mm with the support foot removed | |
|
Sigma High Speed Cine Primes |
95mm Front and Mid Barrel | 95mm with the support foot removed | |
|
Sigma 24-35mm T2.2 Zoom |
114mm Mid Barrel | 114mm - 97.5mm Mid Barrel between the rings | |
|
Sirui Venus T2.9 1.6x Anamorphic |
85mm Mid Barrel | 85mm Mid Barrel with 85 - 82.5mm between the rings with support foot removed | Remove the Support Foot |
|
Sirui Saturn T2.9 1.6x Anamorphic |
65mm Mid Barrel | 65mm Mid Barrel with step-down inserts to accommodate varying diameters | |
|
Tokina Vista Primes |
114mm Front Barrel | ||
|
Tokina 25-75mm T2.9 Cine ATX Zoom |
95mm Front Barrel | ||
|
Tokina 11-20mm T2.9 Cine ATX Zoom |
95mm Front Barrel | ||
|
Zeiss CP2 |
114 Front Barrel | 18mm CP2 might vignette on some sensors | |
|
Zeiss CP3 non-XD |
114mm Mid Barrel | Remove the Support Foot | |
|
Zeiss Supreme Prime Radiance |
114mm Mid Barrel | 114mm - 110mm Mid Barrel between the rings |
ThE LEns Cuff must have at least 10mm (3/8″) on a non-moving segment of the lens body. The provided inserts also require 10mm (3/8″) on a non-moving segment of the lens body. 5mm wide inserts will be available at a later time based on demand.
Each LEns Cuff is is engineered to last and comes with a Full 10 Year warranty against manufacturing defects. Just email us your serial number at service@thelenscuff.com and we’ll take care of the rest.
THE LEns CufF LITE comes with a 2 Year warranty against manufacturing defects. Just email us your serial number at service@thelenscuff.com and we’ll take care of the rest.

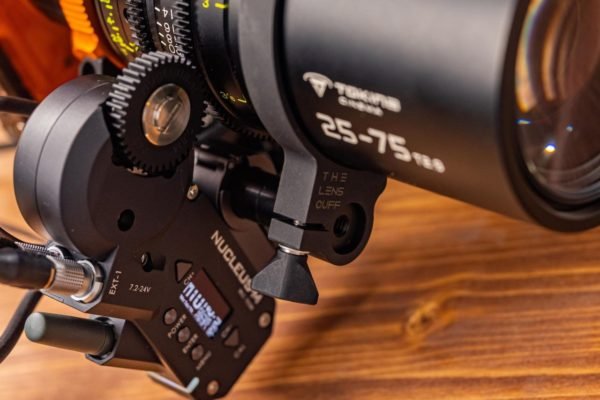

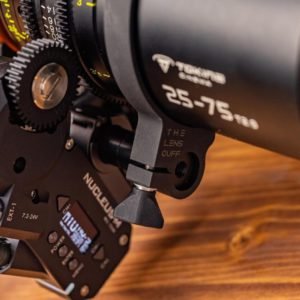

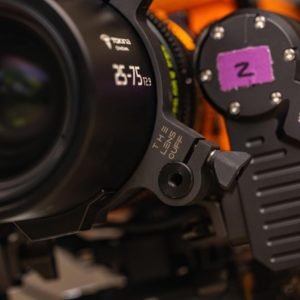

It is recommended to position up to two motors on each side of ThE LEns Cuff. Ideally, go for symmetry.
If rigging a prime lens, one on each side for Focus and Iris.
If rigging a zoom lens, two on one side and the third one on the other. It won’t affect the performance but it will affect the balance of your setup.
Technically all three motors for F I & Z can be attached on the same side. Performance will not be affected, but where balance is critical, it will make a big difference.
