• QARC

    €8 – €122

    THE LENS CUFF LITE QARC

    The Quick Accessory Rigging Connector is a unique way to attach accessories to the base of  THE LENS CUFF.
    Our latest discovery, QARC is the essential building block for expanding THE LENS CUFF ecosystem!
    Attach LiDAR and Rangefinder accessories, small lights or even a smartphone to use as a prompter.
    Rig smart with THE LENS CUFF & QARC.

    The QARC universe is constantly expanding with more modules in the works!

    ALWAYS COPLANAR

    Technical Data

    THE LENS CUFF QARC:

    • Attach accessories 25mm from the base of the Lens Cuff Lite and the Lens Cuff Pro (choose the base that fits your Lens Cuff)
    • 1/4 20 thumbscrew with rosette
    • Quick Release dovetail plate with 2x M3 screws for secure attachment of accessories

    Specifications
    • Precision engineered and made from our state of the art composite
    • 1/4 20 aluminium thumbscrew with rosette
    • Safety dual spring mechanism
    • only 21g of weight
    • 25mm distance from the base of The Lens Cuff to the LiDAR
    • Universal connector with removable Arri Locator pins

    QARC




    FAQ

    Any Lens with a barrel diameter between 57.5mm and 114mm will match with a Lens Cuff and the provided step down rings. Stills lenses with protrusions for side switches can easily be accommodated using step down rings.

    NOTE: The Lens Cuff Lens Compatibility List is in no way restrictive. Lens compatibility details sourced through internal testing and user submissions.

    Lens

    Compatibility

    Step-down

    Notes

    7artisans Vision

    		 95mm Front Barrel 95mm - 90mm

    7artisans Spectrum

    		 85mm Front Barrel -

    Arri Master Prime

    		 114mm Front Barrel Mid Barrel 114mm - 110mm between the rings

    Arri Master Prime Anamorphic

    		 95mm Front Barrel 95mm Mid Barrel between the rings

    Arri Signature Primes

    		 114mm Mid-Barrel Mid Barrel 114mm - 105 mm between the Iris and Focus rings

    Arri Signature Zoom 16-32mm

    		 TBD Mid Barrel 114mm - 110mm between the rings 156mm In development

    Arri Signature Zoom 25-75mm

    		 114mm Front Barrel Mid Barrel 114mm - 110mm between the rings

    Arri Signature Zoom 45-135mm

    		 114mm Front Barrel Mid Barrel 114mm - 110mm between the rings

    Arri Signature Zoom 65-300mm

    		 TBD Mid Barrel 114mm - 110mm between the rings 156mm In development

    ARRI 9.5-18mm Ultra Wide Zoom

    		 114mm Mid Barrel 114mm - 110mm between the rings

    ARRI Ultra Prime

    		 95mm Front Barrel 95mm Mid Barrel between the rings

    Angenieux Optimo Zooms

    		 114mm Front Barrel 85mm with 85 - 80mm between the rings

    Angenieux Anamorphic Zoom

    		 136mm Mid Barrel - 136mm in development

    Angenieux Optimo Prime

    		 114mm Mid Barrel Mid Barrel 114mm - 110mm between the rings

    Atlas Mercury

    		 95mm Front Barrel -

    Atlas Orion

    		 114mm Front Barrel -

    Chiopt Xtreme Zoom

    		 85mm Mid Barrel 95mm with 95 - 90mm with the support foot removed

    Canon Sumire Prime

    		 114mm Front Barrel

    Canon CN-E

    		 114mm Front Barrel

    Canon CN-E 45-135mm Flex Zoom

    		 114mm Mid Barrel

    Cooke Anamorphic

    		 114mm Front Barrel 114mm Mid Barrel for some focal lengths

    Blazar Remus x1.5

    		 85mm Front Barrel 85mm-80mm

    Cooke Panchro

    		 114mm Front Barrel 114mm - 110mm

    Cooke S4 - S8

    		 114mm Front Barrel Most Focal lengths

    Cooke SP3

    		 65mm Mid Barrel 65mm Mid Barrel with 65-64mm step-down insert

    DZO Gnosis

    		 114mm Front Barrel 114mm - 110mm Mid Barrel

    DZO Catta Zoom

    		 85mm Mid Barrel 85mm with 85-80mm between the rings

    DZO Catta Ace Zoom

    		 85mm Mid Barrel 85mm with 85 - 80mm between the rings

    DZO Pictor Zoom

    		 95mm Front Barrel 95 - 90mm Front Barrel between the rings

    DZO Vespid Primes

    		 85mm Mid Barrel 85mm with 85 - 80mm Front and Mid Barrel

    Fujifilm MKX Zoom

    		 85mm Mid Barrel 85mm with 85 - 80mm Front and Mid Barrel

    Fujinon MK

    		 85mm Mid Barrel 85mm with 85 - 80mm Front and Mid Barrel

    Fujinon Premista

    		 114mm Mid Barrel 114mm Mid Barrel

    Great Joy 35mm Anamorphic

    		 85mm Front Barrel 85mm Mid Barrel with 85 - 77.5mm between the rings

    Laowa Nanomorph Mirrorless

    		 65mm Front Barrel 65mm - 58.5mm

    Laowa Nanomorph Zoom

    		 85mm Mid Barrel 85mm Mid Barrel with 85 - 80mm between the Focus and Zoom rings Remove the Support Foot

    Laowa Ranger Zooms

    		 85mm Mid Barrel 85mm Mid Barrel with 85 - 77.5mm between the Focus and Zoom rings Remove the Support Foot

    Leitz Cine ELSIE

    		 95mm Front Barrel 95mm Mid Barrel with 95 - 90mm between the rings

    Leitz Cine HUGO

    		 95mm Front Barrel

    Leitz Cine Classic

    		 114mm Front Barrel 114mm - 110mm Mid Barrel

    Leitz Cine THALIA

    		 95mm Front Barrel 95mm Mid Barrel with 95 - 92.5mm between the rings

    Meike S35 Cine Mini Primes

    		 85mm Front Barrel 85mm with 85 - 80mm Front Barrel

    Meike Full Frame

    		 85mm & 95mm Front Barrel 95mm Front Barrel with 95 - 90mm

    Nisi Athena

    		 85mm  85mm - 80mm step down

    P+S TECHNIK EVOLUTION 2x

    		 85mm Mid Barrel

    Rokinon XEEN CF

    		 114mm Mid Barrel 114mm - 110mm Mid Barrel between the rings

    Sigma Cine 18-35mm T2 Zoom

    		 95mm Front and Mid Barrel 95mm with the support foot removed

    Sigma Cine 50-100mm T2 Zoom

    		 95mm Front and Mid Barrel 95mm with the support foot removed

    Sigma High Speed Cine Primes

    		 95mm Front and Mid Barrel 95mm with the support foot removed

    Sigma 24-35mm T2.2 Zoom

    		 114mm Mid Barrel 114mm - 97.5mm Mid Barrel between the rings

    Sirui Venus T2.9 1.6x Anamorphic

    		 85mm Mid Barrel 85mm Mid Barrel with 85 - 82.5mm between the rings with support foot removed Remove the Support Foot

    Sirui Saturn T2.9 1.6x Anamorphic

    		 65mm Mid Barrel 65mm Mid Barrel with step-down inserts to accommodate varying diameters

    Tokina Vista Primes

    		 114mm Front Barrel

    Tokina 25-75mm T2.9 Cine ATX Zoom

    		 95mm Front Barrel

    Tokina 11-20mm T2.9 Cine ATX Zoom

    		 95mm Front Barrel

    Zeiss CP2

    		 114 Front Barrel 18mm CP2 might vignette on some sensors

    Zeiss CP3    non-XD

    		 114mm Mid Barrel Remove the Support Foot

    Zeiss Supreme Prime Radiance

    		 114mm Mid Barrel 114mm - 110mm Mid Barrel between the rings

    ThE LEns Cuff must have at least 10mm (3/8″) on a non-moving segment of the lens body. The provided inserts also require 10mm (3/8″) on a non-moving segment of the lens body. 5mm wide inserts will be available at a later time based on demand.

    Ideal placement is on a non rotating segment of the lens between the Focus, Iris or Zoom rings. Alternatively ThE LEns Cuff may be attached anywhere on the lens where the barrel is tubular and not conical (angled).

    Each LEns Cuff is is engineered to last and comes with a Full 10 Year warranty against manufacturing defects. Just email us your serial number at service@thelenscuff.com and we’ll take care of the rest.

    THE LEns CufF LITE comes with a 2 Year warranty against manufacturing defects. Just email us your serial number at service@thelenscuff.com and we’ll take care of the rest.



    It is recommended to position up to two motors on each side of ThE LEns Cuff. Ideally, go for symmetry.
    If rigging a prime lens, one on each side for Focus and Iris.
    If rigging a zoom lens, two on one side and the third one on the other. It won’t affect the performance but it will affect the balance of your setup.

    Technically all three motors for F I & Z can be attached on the same side. Performance will not be affected, but where balance is critical, it will make a big difference.

    Simple, it is easy to maintain, hard wearing and protective! On top of that, it’s eco-friendly, and sustainable. We chose Anthracite original Alcantara® fabric after testing a number of options, from microfibre to chamois, leather and nylon. The pouches will protect your gear when you toss a LEns Cuff in your bag and the non-woven fabric can also be used to wipe your glasses in a pinch. It is easy to clean. For maintenance instructions visit https://www.alcantara.com/cleaning-maintenance/how-clean-alcantara/

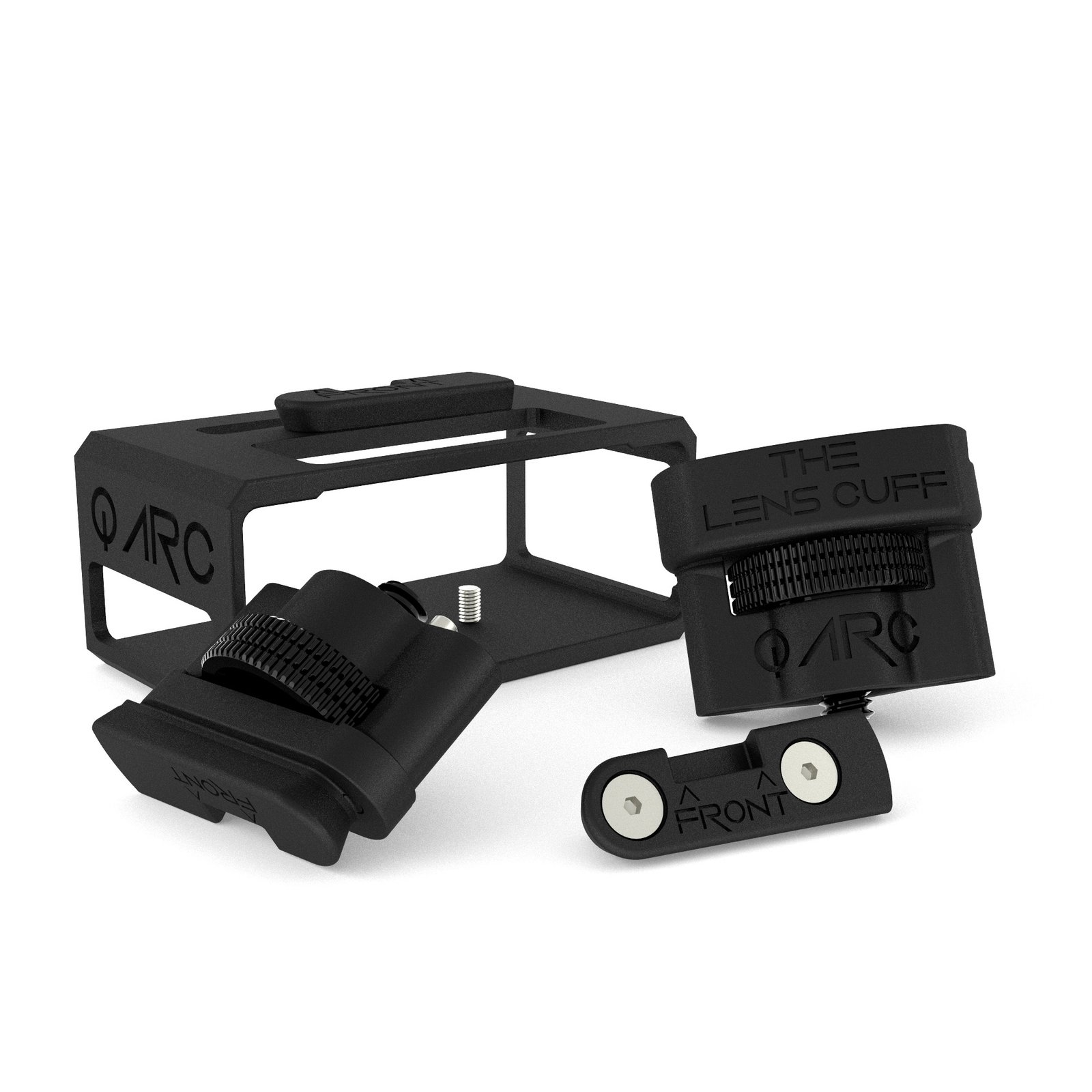

    QARC Kit

    QARC Lite with LiDAR Low Profile, QARC Lite with LiDAR Cage, QARC Lite with Universal Connector, QARC Lite Full Kit, QARC Lite Full Kit with Hard Case, QARC Pro with LiDAR Low Profile, QARC Pro with LiDAR Cage, QARC Pro with Universal Connector, QARC Pro Full Kit, QARC Pro Full Kit with Hard Case, QARC DJI LiDAR Cage, QARC DJI LiDAR Dovetail, QARC Universal Connector, QARC Hard Case
